Product Benefits

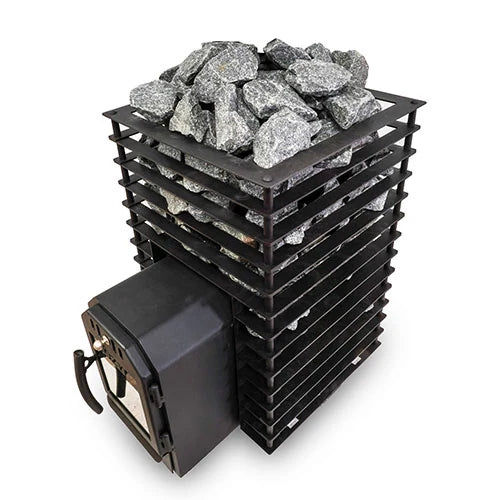

The Cozy Heat Quattro Thru-Wall uses a square cage of horizontal steel bars, so no space is wasted at the corners. It carries 265 lb of stone on the COZYQUATTROTW12 inside a body only 17.3 in wide, the same rock as stoves two inches wider. The firebox door opens into the room behind the sauna, so wood and ash never reach the benches. The COZYQUATTROTW12 heats a home sauna room of 210 to 423 cu ft and the COZYQUATTROTW18 covers 317 to 635 cu ft. Both are wood burning sauna heaters that install through a masonry wall with no power and no wiring, and the only routine jobs are emptying the ash box and restacking the stones once per year. Stones and chimney are used with the stove and both are sold separately.

In a small sauna the bench gap decides everything, and most owners find that out only after the stove arrives. The Quattro carries the same 265 lb of stone as the OG and the SW inside a body 2.3 in narrower than one and 2.0 in narrower than the other, because a square cage uses its corners. Put the firebox through the wall and the stove takes up even less of the room you sit in.

The Thru-Wall models install into an opening in a concrete or brick wall. A standard timber stud wall will not do. Maximum wall thickness is 5.9 in, the opening must be at least 10.0 in wide, and the bottom of the opening must sit at least 17.3 in above the floor. Measure before you order. These stoves are CE marked under Construction Products Regulation 305/2011 EU and tested to EN 15821:2010 by TUV SUD, notified body 0036, but there is no UL, ETL or CSA listing, so confirm with your building department and your insurer. Lead time is 60 days from Estonia on LTL freight. If either the wall or the permit is a problem, buy the Cozy Heat Quattro and load it from inside the room.

You can find a cheaper wood sauna stove. You cannot buy this one cheaper: Cozy Heat sets the price and every dealer holds it. What changes is what comes with the order.

The specs back that up. The COZYQUATTROTW18 runs at 81.3% overall efficiency with a flue gas temperature of 234 °C / 453 °F. The COZYQUATTROTW12 runs at 73.9%. Dust emission is 22 mg/m³ and 35 mg/m³. Both burn wood logs only, up to 30 cm / 11.8 in, loaded on the grate at the back of the chamber rather than in the extension. Both are black steel with a 114 mm / 4.49 in flue that exits from the top.

The wall decides this one, and the numbers are in the callout above. The extension pushes the stove depth to 24.6 to 26.2 in on the COZYQUATTROTW12 and 28.9 to 30.7 in on the COZYQUATTROTW18. Inside the sauna, clearances match the standard model: 6.7 in to the sides on the 12 kW and 9.1 in on the 18 kW, with 44.5 in of headroom above the COZYQUATTROTW12 and 52.8 in above the COZYQUATTROTW18. Nothing is hardwired. Empty the ash box each session and restack the stones once per year.

• Cozy Heat Quattro COZYQUATTROTW12 and COZYQUATTROTW18: most stone per inch, fed from next door

• The Promise

• Why Buy This From GooFitness

• Financing through Affirm, Brickhouse, Reliant and Acorn.

Specifications

• IMPORTANT: THE WALL HAS TO BE MASONRY, AND NO MORE THAN 5.9 IN THICK

Ideal For

Rooms where the bench gap is the limit and there is a masonry wall behind.

Low ceilings on the 18 kW. At 28.7 in this is the shortest big Thru-Wall in the range.

Buyers who prefer a hard edged look to a barrel or a cylinder.

Not Ideal For

Anyone whose inspector or insurer requires a UL, ETL or CSA listed appliance.

Timber stud walls. The opening has to be concrete or brick, 5.9 in thick at most.

Freestanding saunas with no adjacent room. Buy the standard Cozy Heat Quattro.

Benefits and Features

Benefits and the feature behind each one

What you get

The feature behind it

Maximum stone in a narrow body

265 lb on the COZYQUATTROTW12 at only 17.3 in wide, the same rock as stoves 2 in wider

Fits under a low ceiling on the big model

COZYQUATTROTW18 stands 28.7 in, the shortest 18 kW in the range

No wood, bark or ash inside the sauna

Fire chamber extension passes through the wall so the door opens in the next room

Less wood per session

Three stage air feed burns the flue gases as well as the wood. 81.3% efficiency on the COZYQUATTROTW18

The hottest part is the part they overbuilt

Flame cutter in 5 mm stainless steel, the component that takes the most heat

Shipping & Delivery

We check the wall first. Thickness, opening size and height off the floor, before the order goes in. On a 60 day lead time from Estonia that call is the one that saves the order.

White glove delivery is available as a paid add-on. The crew brings it into the room you want instead of leaving 220 lb of stove at the curb.

Multi-unit pricing, consolidated freight, and a person on the contact us at support@goofitness.com.

Warranty

✓ GooFitness is an authorized Cozy Heat dealer. Orders include the factory warranty and direct manufacturer support.

Authorized dealer, so the 24 month factory warranty is valid and Cozy Heat supports the stove directly.

Frequently Asked Questions

How much stone does the Quattro Thru-Wall hold? The COZYQUATTROTW12 carries 265 lb of stone inside a body only 17.3 in wide, the same rock load as stoves two inches wider.

What size room does it heat? The COZYQUATTROTW12 heats 210 to 423 cubic feet, and the COZYQUATTROTW18 covers 317 to 635 cubic feet.

How does the thru-wall installation work? The firebox door installs into an opening in a concrete or brick wall — a standard timber stud wall won't work — with a maximum wall thickness of 5.9 in, an opening at least 10.0 in wide, and the bottom of the opening at least 17.3 in above the floor.

Is it listed for use in the US or Canada? It's CE marked under Construction Products Regulation 305/2011 EU and tested to EN 15821:2010 by TUV SUD, but it carries no UL, ETL, or CSA listing, so check with your local building department and insurer.

How long does it take to ship? Lead time is 60 days from Estonia, shipped by LTL freight.
